Introduction
This looks like a potentiometer, but its an encoder switch.
It is a cascadable 360 rotary encoder switch with 20 pulses per revolution, and each pulse corresponds to a detent. There are LED lights set for each detent to allow users visually check the real-time status of the encoder.
For ease of use, the module is designed with I2C data output and configurable accuracy within 1~51 for every detent (set in the program). For instance, when it is set to 1, turn on one LED light by rotating 2.5 revolutions;when set to 51, then one LED light can be switched on by rotating one detent.
In order to apply to more scenarios, the encoder is equipped with cascade function that enables to control multiple output devices by occupying only one I2C interface, such as, simultaneously controlling light brightness, color, volume, speed, etc.
Use Case Diagram (Control RGB LED by three encoders)
Features
Pluggable cascade
I2C Data output, forward to increase, reverse to decrease
Onboard LED detent indicator
Allow setting 4 different I2C addresses by address switch
Specification
Operating Voltage: 3.3V~5V
Total Rotating Angle: 360
Pulses Per Revolution: 20
Interface: two Gravity connectors; I2C
Cascadable Device Number: 4
Rotation Lifespan: 30000200 Cycles
Contact Resistance: 100m
Insulation Impedance: 100M above
Oscillation: 10ms press
Operating Temperature: -30~+80
Accuracy: 1~51
Minimum Settable Value: 1(Light up one LED when rotating 2.5 turns)
Maximum Settable Value: 51(Light up one LED when rotating 1 detent)
Storage: 0~1023

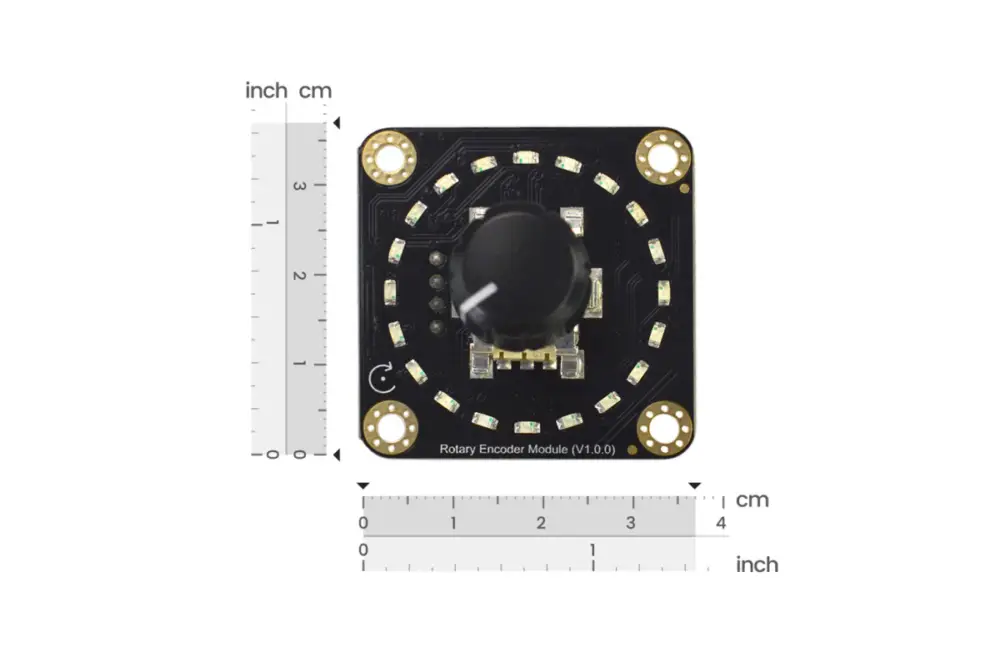

Dimension: 37*37mm/1.46*1.46
Shipping List
Gravity: Rotary Encoder Module x1
Gravity I2C/UART Sensor Connector x1
Documents
Product wiki
Applications
Application Field
Automotive electronics
Multimedia speaker
Instruments and Apparatuses
Smart home
Application Case
Volume adjustment
Fire regulation
Speed regulation
Light adjustment
