Introduction
This megapixel USB wide-angle camera with a resolution of 1280*720 supports a 140-degree viewing angle and standard UVC communication protocol.
Plug and play, it is compatible with Raspberry Pi and NVIDIA Jetson Nano series. The wide viewing angle provides you with a better photo experience.
The module has a very small size of 38mm*38mm, which can be embedded in various devices for face recognition, image recognition, security, remote teaching, and other projects.
Features
Plug and play
Compatible with Raspberry Pi and NVIDIA Jetson Nano
Specification
Lens Size: 1/4 inch
Pixel Size: 3m x 3m
Maximum Effective Pixels: FULL HD 1280(H)*720(V)
Field of View (FOV): 140
Output Image Format: MJPEG/YUV2 (YUYV)
Supported Resolutions:
320*240 MJPEG@30fps;
352*288 YUV2@30fps;
352*288 MJPEG@30fps;
640*480 YUV2@25fps;
800*600 MJPEG@30fps
320*240 YUV2@30fps;
1280*720 MJPEG @25fps;
800*600 YUV2@15fps;
640*480 MJPEG@25fps;
1280*720 YUV2@10fps
Special Function: Lens correction/Defective pixel correction/Black sun cancellation
Minimum Illumination: 0. 051lux
Shutter Type: Electronic rolling shutter / Frame exposure
USB Protocol: USB2.0 HS/FS
Interface Type: USB2.0 High Speed
Support OTG Protocol: USB2.0 OTG
Support Driver-free Protocol: USB Video Class (UVC)
Automatic Exposure Control AEC: support
Automatic White Balance AEB: support
Automatic Gain Control AGC: support
Adjustable Parameters: brightness / contrast / color saturation / hue / sharpness / gamma / white balance / backlight / contrast / exposure
Night Vision Function: support, need to cooperate with infrared lens 850 or 940nm, and infrared light board
Infrared Light Board-Power Supply Interface: support, 2P-2.0mm socket
Power Supply Mode: USB BUS POWER 4P-2.0mm socket
Working Voltage: DC 5V
Working Current: 120mA~220mA
Working Temperature: 060
Storage Temperature: -2075
Size/Weight: 38x38mm/1.50×1.50 inch (Compatible with 32x32mm/1.26×1.26 inch) / about 30g
Support Operating System: Windows, iOS, Android, Linux, etc.
Shipping List

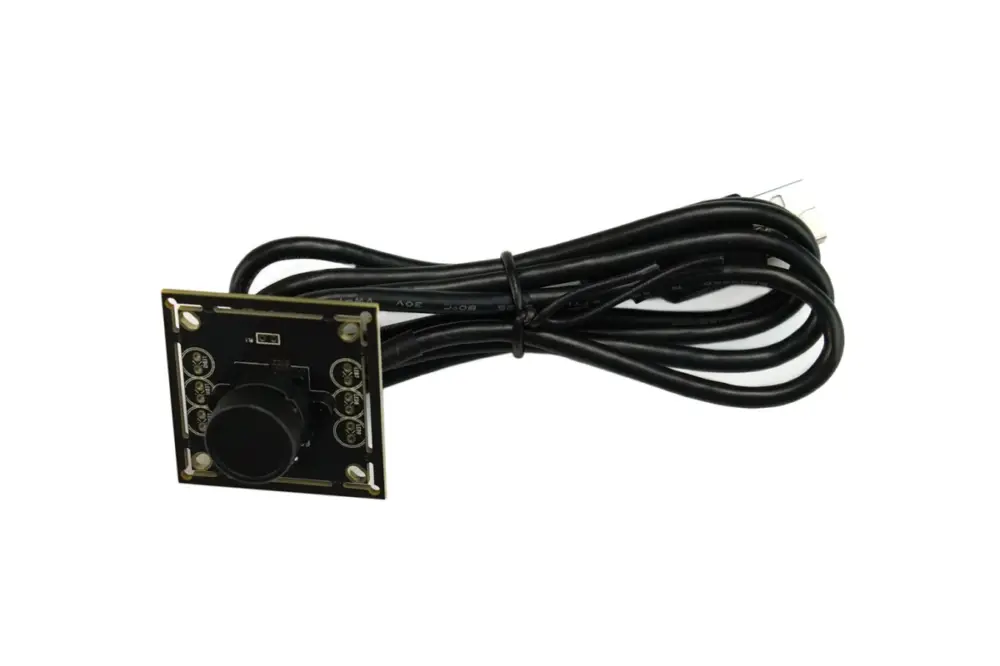

Megapixel 720p USB Wide-angle Camera x1
USB Cable x1
Applications
Face recognition
Image recognition
Security
Remote teaching
