Introduction
BMM150 is a low-power and low-noise 3-axis geomagnetic sensor from Bosch for compass applications. It allows measurements of the magnetic field and compass angle in three perpendiculars within a measuring range of 1300uT on X and Y axis and 2500uT on Z axis.

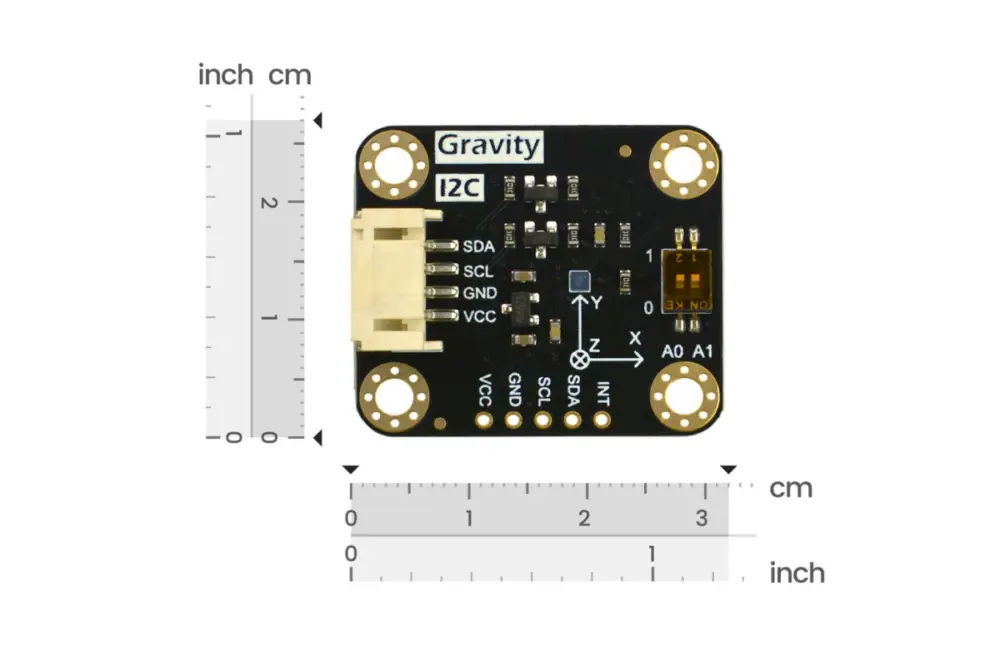

Featuring small size and lightweight, the sensor has a 2-bit DIP switch for I2C address setup, and 4 addresses are available. Based on Bosch’s proprietary FlipCore technology, the performance and features of BMM150 are carefully tuned and thus can offer absolute spatial orientation without calibration, perfectly matching the requirements of all 3-axis mobile applications such as robot navigation & positioning, electric compass, electric map, navigation or augmented reality.
Connection Diagram with FireBeetle 2 ESP32-E IoT Microcontroller
Features
Programmable interrupt pin
Configurable four I2C addresses
Low noise(0.3-1.4uT)
High accuracy(30T horizontal geomagnetic field component, 2.5)
Specification
Power Supply: 3.3V-5V
Operating Temperature: -40 to 85C
Communication: I2C
Resolution: 0.3T
Zero Offset: 40T/2T (software optimized)
Non-linearity: 1%FS
Measuring Range: 1300T (x & y axis), 2500T (z-axis)
Operating Current: 1.7mA@ frequency 10Hz
Low Noise: 0.3-1.4T
Accuracy: 30T horizontal geomagnetic field component, 2.5
Start-up Time: 3ms
Shipping List
Gravity: BMM150 Triple Axis Magnetometer Sensor 1
Gravity-4P I2C/UART Sensor Cable 1
Black Single-row Pin Header-5PIN 1
Documents
Product wiki
STP 3D Model
2D CAD Dimensions
Schematics
Datasheet
Applications
Drones
Compass
Indoor/Outdoor Navigation
Head Motion Tracking
Augmented Reality
Tilt-compensated Electric Map
