The SLogic Combo 8 is a versatile development tool that integrates the functionalities of a logic analyzer, CKLink debugger, DAP-Link debugger, and UART module (USB2UART). It allows for arbitrary switching between these functions via buttons. This 4-in-1 tool offers a maximum sampling rate of 80 MHz, supports up to 8 channels, and is compatible with multiple platforms. Despite its compact form factor, it provides a wide range of over 130 analysis protocols.
As a logic analyzer, it offers a maximum sampling frequency of 80 MHz, enabling the analysis of a broad range of protocols in conjunction with a host computer. When used as a UART module, it supports up to 4 serial ports with a maximum baud rate of 20 Mbps, making it suitable for various applications that rely on serial communication. As a CKLink or DAPLink, it aids in debugging RISC-V and ARM-based chips, with an additional serial port available for log observation.
Powerful 4-in-1 Debugger
Powerful Features
Support for analysing 130+ protocols
Function Annotation

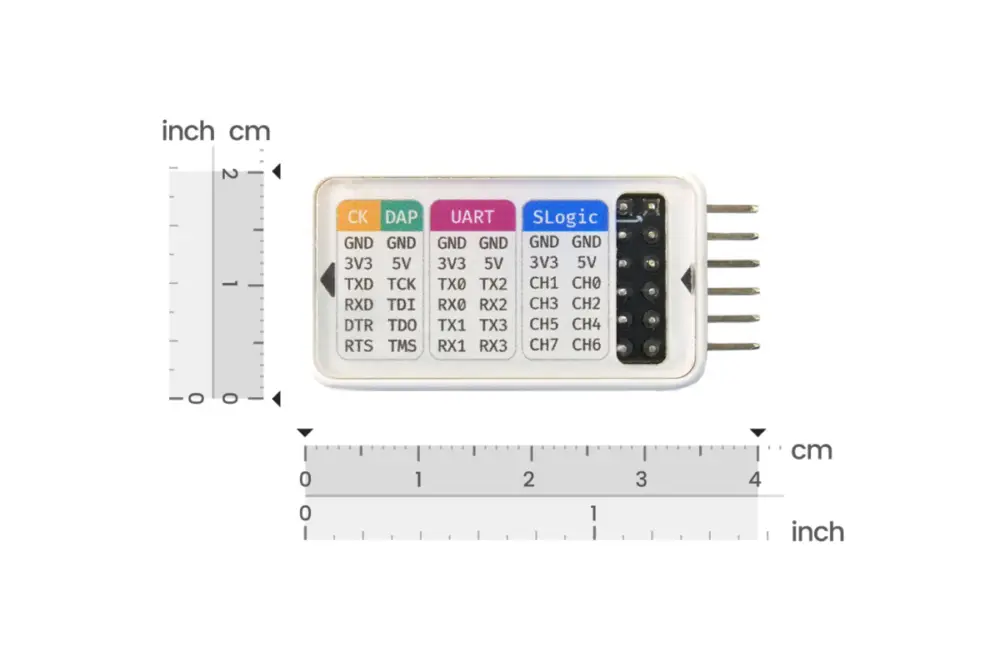

Panel Information
Applications
Protocol Analysis
Serial Communication
Chip Debugging
Education and Training
Hardware Development and Testing
Research and Development
Specification
SLogic Function Parameters
Maximum Channel Number: 8CH
Maximum Sampling Rate: 80M
Transmission Bandwidth: 320Mb/s
Sampling Mode: Stream
Typical Configuration: 80M@4CH 40M@8CH
Signal Input Range: 0~3.6V
High and Low Level Thresholds: VIN>2V VIL0.8V
In Windows environment, the SLogic Combo 8 has maximum transmission bandwidth of 160 Mb/s. The typical configuration includes 80M@2CH and 40M@4CH.
CKLink Function Parameters
JTAG Clock Rate: 16M
Typical Dump Speed: 1200KB/s
Debug Serial Port: Up to 20Mbps
DAPLink Function Parameters
Debug Serial Port: Up to 20Mbps
Typical Burning Speed: 110KB/s
UART Function Parameters
Maximum Baud Rate: 220Mbps+21Mbps
Total Bandwidth: 42Mbps
Documents
Basic Operations
FAQ
Using as CKLink
Using as DAPLink
Using as Serial Module
Using as a Logic Analyzer
